Hannibal Industrial Rectifiers provide reliable AC to DC conversion for critical industrial applications, including oil & gas, telecom, and defense sectors. Designed with thyristor-controlled rectifier technology and DSP control, they ensure high efficiency, low output ripple , and precise voltage regulation. Suitable as battery chargers (float, boost, equalize modes), DC power supplies, or redundant power systems. This rectifier is ideal for harsh environments, offering high reliability and maintenance-friendly operation.

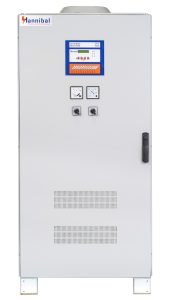

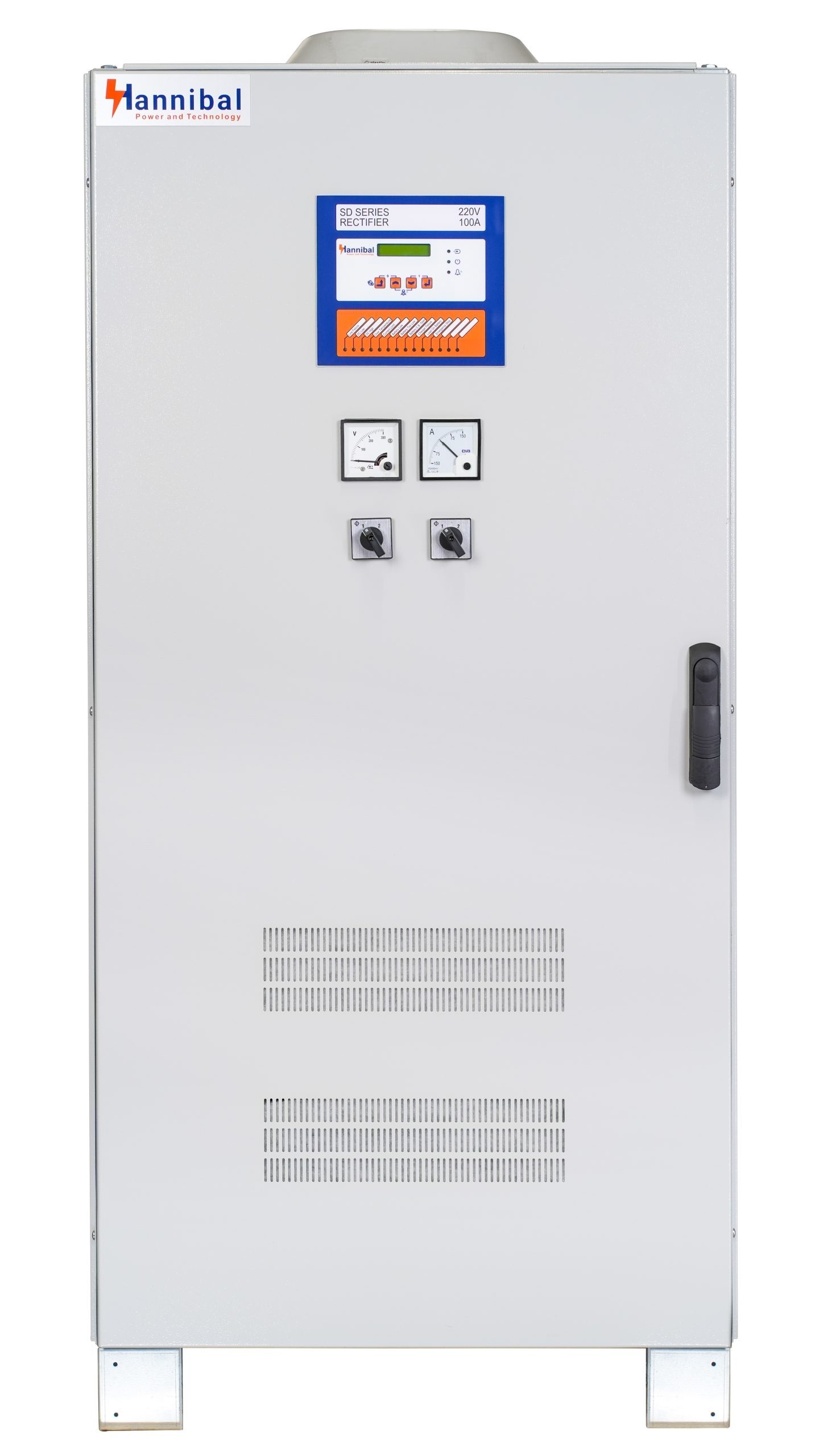

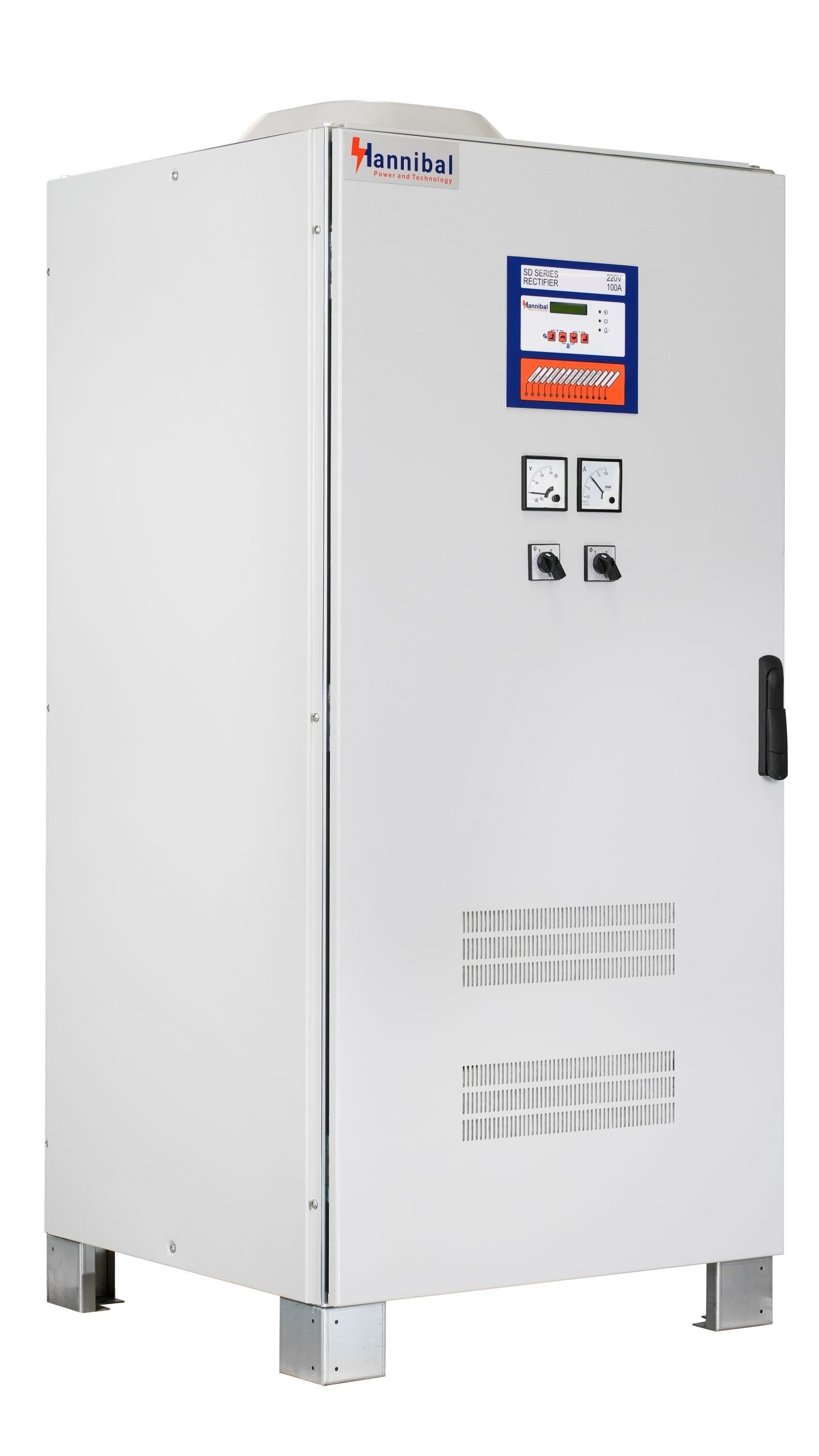

The Industrial Rectifier SD Series by Hannibal Power delivers high-efficiency DC power conversion tailored for demanding industrial environments. Built for durability and optimal performance, this industrial rectifier is ideal for sectors such as telecommunications, automation, and control systems. With robust components and smart protection features, the SD Series ensures stable and continuous power delivery.
Continuous and Stable Power Supply:
SD Rectifiers ensure a reliable and uninterrupted power source, which is essential for the smooth operation of industrial equipment and processes.
Enhanced Energy Efficiency:
By converting alternating current (AC) to direct current (DC) efficiently, rectifiers minimize energy losses and improve overall system efficiency.
Flexibility integration with operating environment:
Very high reliability:
The unique design provides forced fan cooling of both thyristors and the enclosure on most ratings to:
Offer full power availability at the maximumdesigntemperature.
Ruggedized solutions:
The system may be tailored to various environments, e.g. high temperatures, earthquakes or vibrations, dust, elevation, moisture.
Combined with stand-by battery, Hannibal rectifier-charger protects DC critical industrial load from the damaging effects of power interruptions and losses. It features a microprocessor control which offers exceptional output stability and allows adaptability to various application requirements.
Hannibal range of rectifierschargers is available from 30 A to 250 A with single-phase input, and from 30 A to 2500 A with threephase input. It offers several output voltages from 24 Vdc to 384 Vdc.
Hannibal rectifier is also available with 400 Vdc output. This configuration can be combined with a inverter to design specific high ratings double conversion AC UPS systems (up to 500 kVA).
To further improve load availability and process reliability, Hannibal is able to operate in dual or trial parallel configuration, with single or dual batteries, and can include a DC bustie.
| Technical Data | Ratings |
|---|---|
|
Input Transformer |
Galvanic isolation Transformer , class F (Class H Optional) |
|
AC voltage
• Single phase |
1 x 230 V (220, 240) |
|
AC voltage
• Three phase |
3 x 400 V (380, 415) |
|
Voltage tolerance |
+/- 15 % |
|
Neutral configuration |
with or without neutral |
|
Frequency |
50 Hz (60 Hz) |
|
Frequency tolerance |
+/- 5 % |
|
Frequency range
(temporary) |
45 Hz to 65 Hz (with 50 Hz nominal) |
|
Total harmonic current
distorsion (THDI) |
< 30 % (6-pulse version) < 12 % (12-pulse version) <5% (IGBT version) |
|
Inrush current |
< 15 x In (for 6-pulse and 12-pulse) |
| Technical Data | Ratings |
|---|---|
|
Nominal DC voltage |
24 V 48 V 110-125 V 220-240 V 400 V |
|
Output DC voltage range |
17-40 V 36-75 V 88-160 V 176-300 V 296 550 V |
|
AC voltage
• Three phase |
3 x 400 V (380, 415) |
|
Voltage stability (in stabilized floating mode, input within tolerance) |
|
|
Unitary system |
+/-1 % |
|
Parallel systems |
+/-1 % to +/-2 % |
|
Voltage ripple |
≤ 1 % RMS, in float mode, battery disconnected |
| Technical Data | Ratings |
|---|---|
|
Type |
Lead acid or nickel cadmium, vented or recombination |
|
Autonomy |
From few minutes to several hours, on request |
|
Battery current limitation
(typical, float & boost
modes) |
1. 0.1 C (lead-acid battery) 2. 0.2 C (nickel-cadmium battery) |
