Modular Inverter

Description

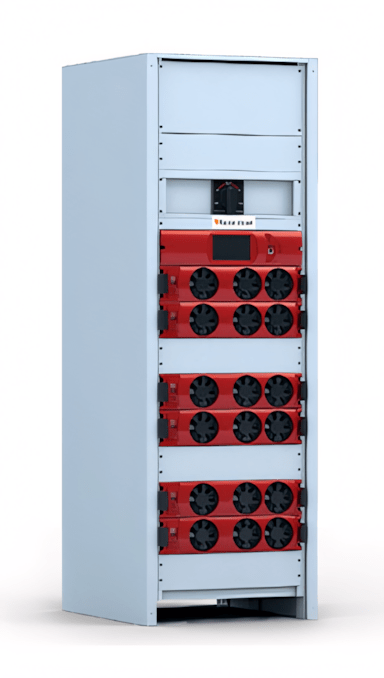

The Hannibal Modular Inverter is a robust DC to AC power solution designed for mission-critical industrial environments. It delivers pure sine wave output with high efficiency and reliability, featuring a modular, hot-swappable design, flexible phase options, and compatibility with various battery types. Ideal for data centers, medical equipment, oil & gas, automation, and telecom applications.

Options

Customized products based on specification.
High efficiency (DC to AC up to 93.5%).
Compact design.
Dual input sources (AC & DC).
with a wide AC input range of 150 Vac to 265 Vac
Transfer time reduced to 0.
Up to 12 kVA in 2 U.
True sine wave output(T.H.D <3%).
RS232 & RS485 &Optional SNMP communication port;
Power-on self-test, soft output start, start auto restart while AC or DC is recovering.
Auto switch function: DC to AC, AC bypass, less than 5ms.
Real-time monitoring of the system operating status, audible and visual
alarm.
Record the historical alarm message and can be queried.
Build in voltage regulator to stabilize AC voltage;
Maintenance bypass/DC available.

Hannibal Industrial

Modular-Inverter.pdf

Monitoring Software

Windows
MAC
Linux

Quote

Click Here

product overview

Hannibal Modular Inverter Heavy-duty DC/AC Inverter, designed and developed to power critical loads in industrial environments such as Data Centers and Server Rooms like IBM Power Servers, Dell PowerEdge Servers, Healthcare and Medical Equipment, like Siemens-healthiness products, Pharmaceutical, Oil, Gas, and Petrochemical Industries, Chemical, Power Generation and Distribution, Semiconductor like TSMC, Automation products like Emerson, & Renewable Energy and Telecommunication and IT usage like Axing products.

Hannibal Modular inverters are fully customizable according to the Client’s needs. Single-phase or three-phase output and IGBT-based full bridge technology of the conversion units. Also is a DC-to-AC converter with a Modular structure and hot-swappable power Module design and is able to work with different battery types like Alcad or Saft Ni-CD / Yuasa VRLA/ Enersys OPZV/ OPZV/Lithium-ion.

The inverter converts DC voltage into pure sinusoidal AC voltage with constant amplitude and stable frequency. The unit works with an IGBT inverter bridge with PWM (pulse width modulation) having high efficiency in the partial load range as well as achieving a low distortion factor at non-linear load.

Hannibal Modular Inverter can offer THD<3% and different kinds of filters like Anti Harmonic Filte- LC filter, RFI Filter, and also passive filters.

IGBT power modules are needed to convert electricity from one form to another so that the electricity can be more conveniently and safely used by all the digital devices that make up our modern lives.

Power modules become hot due to the heat loss in the conversion process and in some cases the losses are as great as 5%. For instance, in an electric vehicle, the losses may be as high as 10-15% which in turn impacts the range and performance of the vehicle.

For more details, you can see some related videos about DC/AC Inverter on our YouTube channel

Various voltage settings for different countries
Fusible Surge Suppression (AC/DC)
Cabinet color can be chosen from RAL codes
Temperature Compensating Charging
Auxiliary Trip Contact
TMS or LSI/G Protection
AC/DC Earth Fault Protection (adjustable)

500 Real Time Event Log with Detailed Parameters
User Friendly Multilingual 320×240 Graphic Display Provided
Operation Information
Monitoring and
Shutdown Software
RS232 Serial and RS485 Ports
Modbus RTU (Optional)
2 Communication Slots
Remote Emergency Power Off (Optional)
Remote Display Panel (Optional)
Dry Contact (Optional)
SNMP (Optional)

Hannibal Industrial DC to AC converters can work easily with Diesel Generators like CAT Diesel Generators and if you can use any kind of battery like the Alcad and Saft Ni-CD / Enersys or Exide Lead Acid VRLA battery or OPZV/ OPZV
