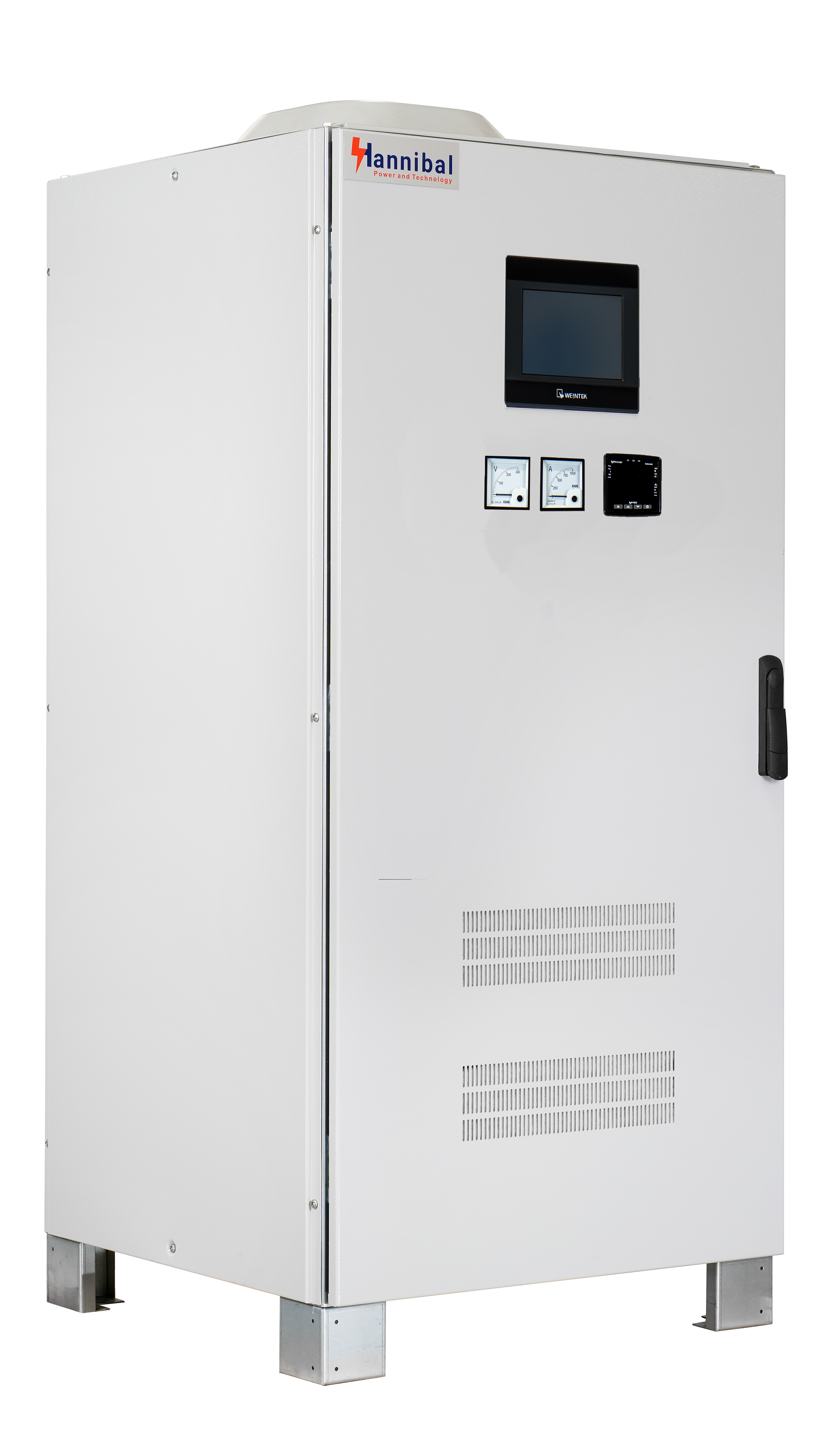

The PLM Series UPS is a flexible and highly reliable online double-conversion UPS, delivering high-availability power for critical infrastructure, oil & gas EPC projects, and other demanding applications. Featuring advanced load-sharing capabilities and SNMP monitoring, this power protection system ensures seamless, uninterrupted operation for sensitive and mission-critical equipment. Designed for longevity, the PLM Series offers a durable, cost-effective solution with an expected lifetime of over 20 years, making it the ideal choice for environments where reliability and uptime are non-negotiable.
The state-of-the-art, double-conversion topology and “building block” design of the Uninterruptible Power Supply (UPS), PLM series is flexible. The system ensures the continuous availability of power and safe operations for all types of critical
loads.
With an expected lifetime of at least 20 years, the PLM Series is a robust,
cost-effective solution.
| Technical Data | Ratings | |
|---|---|---|
|
Rectifier Bridge Topology |
IGBT |
|
|
Input Voltage |
380/400/415 V |
|
|
Voltage tolerance |
+/- 15 % |
|
|
Frequency |
50 Hz (60 Hz) |
|
|
Frequency tolerance |
+/- 5 % |
|
|
Efficiency |
99% |
|
|
Power Factor |
0.99 |
|
|
THD |
<3% |
|
|
Inrush current |
≤ 10 x In |
|
|
Float Voltage |
2.17-2.27 V/cell VRLA
– 1.4-1.42 V/cell Ni cd |
|
|
Boost Voltage |
2.25-2.4 V/cell VRLA
– 1.55-1.65 V/cell Ni cd |
|
|
Ripple |
<1% |
|
| Technical Data | Ratings | |
|---|---|---|
|
Type |
Lead acid or nickel cadmium,
vented or recombination |
|
|
Autonomy |
From few minutes to several hours, on request |
|
|
Battery current limitation |
0.1 C (lead-acid battery)- 0.2 C (nickel-cadmium battery) |
|
|
DC Bus Voltage |
480 VDC |
|
| Technical Data | Ratings | |
|---|---|---|
|
Inverter Bridge Topology |
IGBT with output isolation Transformer |
|
|
AC Voltage • Single phase |
1 x 230 V (220, 240) ; 1 x 110 V (115, 120) |
|
|
AC voltage
• Three phase |
3 x 400 V (380, 415) ; 3 x 220 V (200, 208, 230) |
|
|
AC Voltage Tolerance |
1% |
|
|
Frequency |
50 Hz (60 Hz) |
|
|
Frequency Tolerance |
+/- 0.05 % |
|
|
Inverter overload capability 1 minute |
150 % of nominal power |
|
|
Inverter overload capability 10 minute |
125%
of nominal power |
|
|
Short circuit clearance (in % of nominal current)
|
|
|
|
– 1-ph output
|
250 % / 100ms – 175% / 5s
|
|
|
– 3-ph output Ph-N:
|
315 % / 100 ms – 220 % / 5 s
|
|
|
– 3-ph output Ph-Ph:
|
190 % / 100 ms – 135 % / 5 s |
|
|
Harmonic voltage distortion
|
|
|
|
With 100 % linear load
|
< 3%
|
|
|
With 100 % non-linear load
|
< 5% |
|
|
Power Factor |
0.9
|
|
|
Efficiency |
95%
|
|
|
Allowable crest factor |
up to 3/1
|
|
|
Static Transfer Switch |
SCR Type
|
|
|
Static Bypass transfer Time |
<4 ms
|
|
| Technical Data | Ratings |
|---|---|
|
IEC62040-1:2017 |
Uninterruptible power systems
(UPS) – Part 1: Safety requirements |
|
IEC62040-2:2016 |
Uninterruptible power systems (UPS) – Part 2:
Electromagnetic compatibility (EMC) requirements |
|
IEC62040-3:2011 |
Uninterruptible power systems (UPS) – Part 3:
Method of specifying the performance and test
requirements |
|
IEC61439-1:2011 |
Low voltage switchgear and controlgear
asse blies – Part 1: General rules |
|
IEC60529:1989
+AMD1:1999 |
Degrees of protection provided
by enclosures (IP Code) |
|
IEC60076-11:2004 |
Power transformers – Part 11: Dry type transformers |
