Static Voltage Regulator

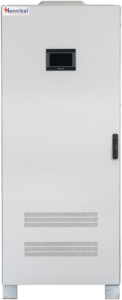

Hannibal Static Voltage Regulator

Description

Hannibal Static Voltage Regulator delivers fast, precise protection against grid fluctuations. With regulation speeds up to 1000 V/sec and a ±1% output voltage tolerance, it keeps your sensitive equipment safe and running smoothly. Perfect for environments with frequent voltage changes, it ensures maximum reliability and peace of mind.

Options

  •  Bypass line
  • Fusible Surge Suppression
  • Redundant Fans
  • Natural Cooling + Smart Fan System
  • Cabinet color can be chosen from RAL
    codes
  • Cable Entry (Top/side/bottom/rear)
  • Ingress Protection: up to IP66
  • Touch Panel with Mimic Diagram
  • Auxiliary Trip Contact
  • Earth Fault Protection (adjustable)
  • Phase Voltage/Sequence protection
  • 500 Real-Time Event Log with Detailed
    Parameters
  • User Friendly Multilingual 320×240 Graphic
    Display Provides
  • Operation Information
  • Monitoring and Shutdown
  • Software
  • RS232 Serial and RS485 Ports
  • Modbus RTU (Optional)
  • 2 Communication Slots
  • Remote Emergency Power Off (Optional)
  • Remote Display Panel (Optional)
  • Dry Contact (Optional)
  • SNMP (Optional)

details

Documents

Hannibal Industrial

Static-Voltage-Regulator.pdf

Monitoring Software
  • Windows
  • MAC
  • Linux

product overview

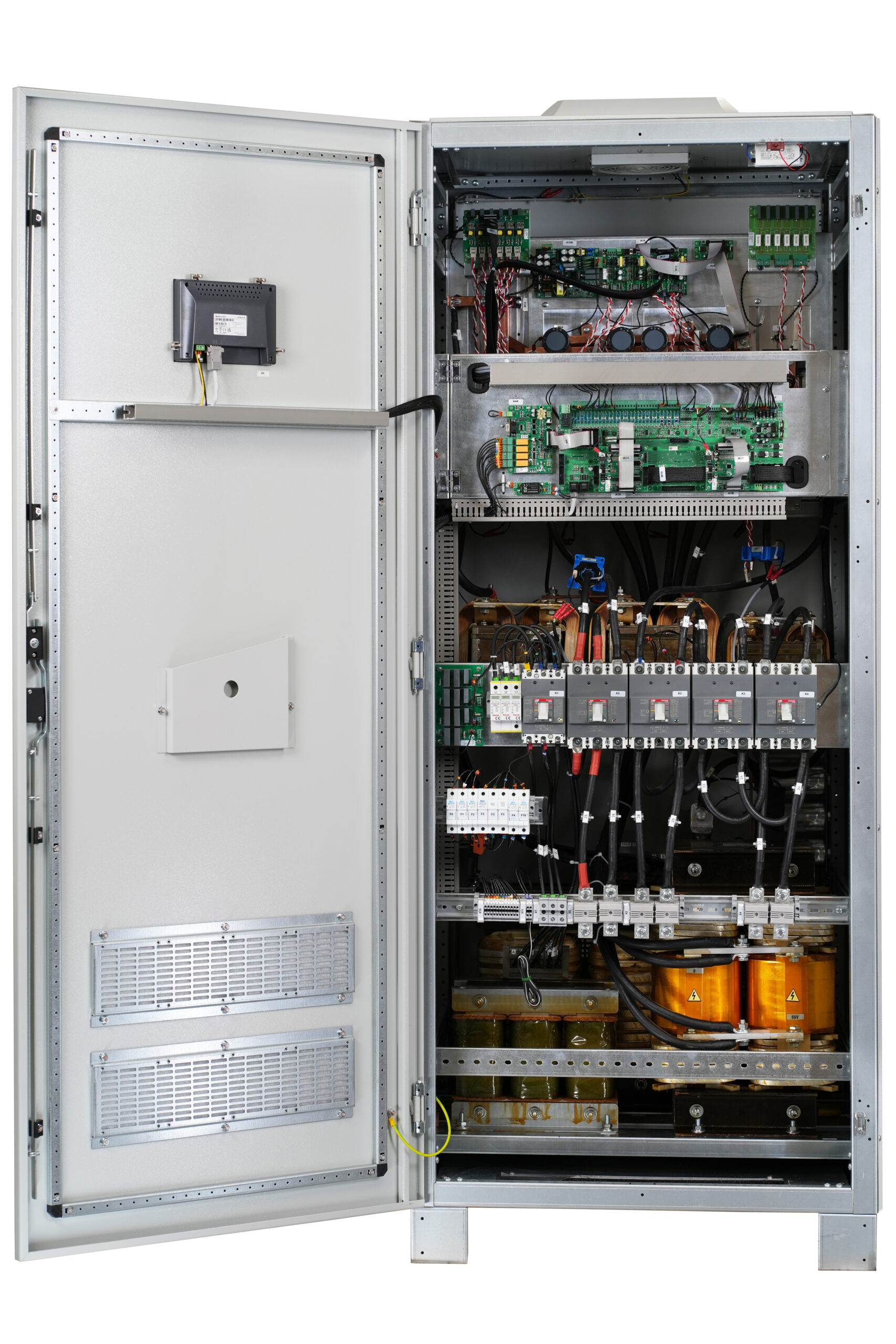

Hannibal Static Voltage Stabilizer regulates grid fluctuations in the best way possible. With adequate regulation speed (500 V/sec.) and full protection, by compensating the difference between phases as well as voltage fluctuations, it ensures the connected systems operate reliably. Since the output voltage tolerance is ±%1, the electronic stabilizer is an ideal solution to secure the electronic load. In cases of the network voltage changes momentarily and frequently, an Electronic Stabilizer could be the solution

  • Wide Input Voltage Range
  • Precise Output Voltage Accuracy ±1% to
    ±5%.
  • Ultra Fast Voltage Regulation (500V/s).
  • True 32-bit Microcontroller Controlled.
  • High Efficiency >97%.
  • Independent Phase Regulation to Correct
    Voltage and Load Imbalance.
  • Electronic Protection Against Over Load, Low Voltage, High Voltage, Over Temperature, Over Current and Short.
    Circuit.
  • Overload Protection up to 150%.
  • Fast Responsive to Voltage Surges.
  • Auto Restart when Mains Available.
  • Full Electronic Static Structure with No Moving Parts, Delivering a ‘Maintenance Free’ Voltage
    Regulation Solution.
  • Fully CE Compliant and Labelled.
  • Power Range, Single phase up to 200 kva and Three phase up to 2000 kva.
  • High Speed regulation up to 500 V/s.
  • Stable operation in event of load or voltage variation.
  • Quite Operation.
  • Suitable for regenerative loads.

technical

details

Input

Technical Data Ratings
AVR Topology
Thyristor
Control System
Micro processor
Input Voltage -Single Phase
110/120/200/220/240/277 V
Input Voltage -Three Phase
208/220/240/380/400/415/480 V
Voltage tolerance
+/- 15 %
Frequency
50 Hz (60 Hz)
Efficiency
94%
Power Factor
0.8

output

Technical Data Ratings
AC voltage • Single phase
1 x 230 V (220, 240) ; 1 x 110 V (115, 120)
AC voltage • Three phase
3 x 400 V (380, 415) ; 3 x 220 V (200, 208, 230)
AC Voltage Tolerance
3%
Frequency
50 Hz (60 Hz)
Frequency Tolerance
+/- 0.05 %
Regulation speed
500 V/s
Inverter overload capability 1 Minute
125 % of nominal power
Inverter overload capability 10 Minute
110 % of nominal power
Efficiency
90 %
Harmonic voltage distortion – With 100 % linear load
< 3 %
Harmonic voltage distortion – With 100 % non-linear load
SS as per IEC/EN 62040-3

Standards

Technical Data Ratings
IEC61558-2-2014
Safety requirements
IEC62041-2:2016
Electromagnetic compatibility (EMC) requirements
ISO 9001, ISO 14001,
Certificate
