UPS-PLMT Series

Description

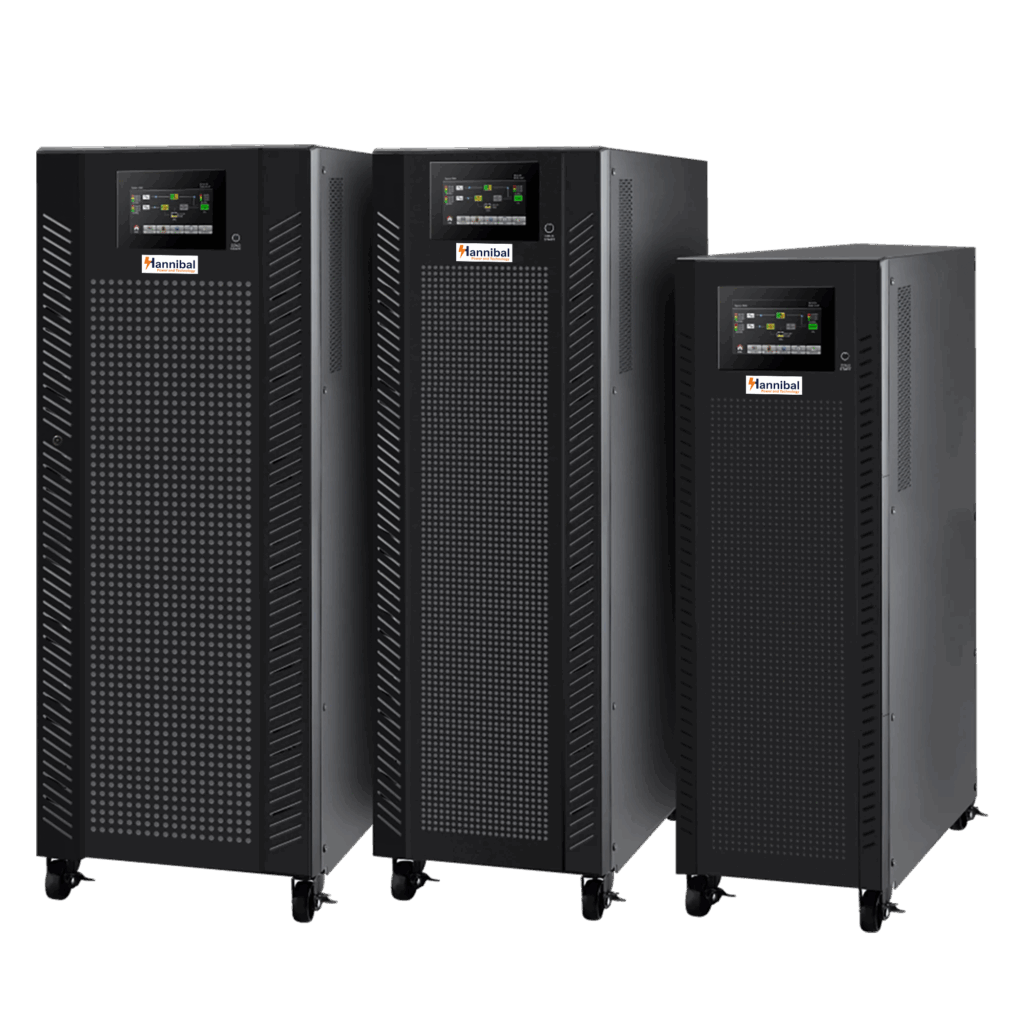

The Hannibal PLMT Series Three-Phase Online UPS (10-80kVA) offers scalable, true double-conversion power protection for IT, OT, and industrial infrastructures. With capacities from 10kVA to 80kVA, it ensures pure sinewave output (PF 1.0) for data centers, healthcare, and critical industrial applications. Featuring 3-level IGBT rectification, split bypass, and parallel operation (up to 4 units), it delivers zero-transfer backup with 98.5% ECO-mode efficiency. Advanced DSP control and wide voltage ranges (110–300VAC) guarantee reliability for demanding environments.

Options

  • On-line double conversation topology
  • Customized products based on specification
  • Option of operation with multi-front panels to give full control of the system to the operator
  • Compatible with Lead Acid (vented/sealed) and Ni-Cd (vented/gas recombination) batteries
  • Communication (Free alarm contacts, remote PC monitoring, Modbus, SNMP, Profibus, DNP 3.0 via RS 232, RS 485, USB or Ethernet TCP/IP ports)

Hannibal Industrial

Standalone-UPS-PLMT-3-Phase.pdf

Monitoring Software
  • Windows
  • MAC
  • Linux

product overview

Hannibal PLMT Series Three-Phase Online UPS (10-80kVA) delivers high-performance, true double-conversion protection for IT, OT, and industrial applications. Supporting loads from 10kVA to 80kVA, it ensures pure sinewave output (PF 1.0) with zero transfer time. Featuring 3-level IGBT rectification, split bypass, and parallel operation (up to 4 units), it combines tower-form efficiency (98.5% ECO mode) with low harmonic distortion (≤4% THD) for mission-critical reliability.

Continuity of process control is critical across a vast range of industrial markets: Data Center and Server Rooms like IBM Power Servers, Dell PowerEdge Servers  Healthcare and Medical Equipment,  Pharmaceutical, Oil, Gas, and Petrochemical Industries, Chemical, Power Generation and Distribution, Semiconductor like TSMC, Automation products like Emerson, & Renewable Energy and Telecommunication and IT.

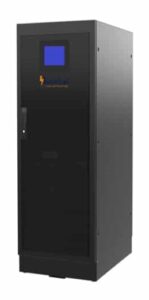

Hannibal Tower type UPS is an IGBT base converter. AC to DC (Rectifier) and DC to AC (Inverter) work with IGBT. Hannibal dual online UPS offers THD<3% and different kinds of filters like Anti Harmonic Filte- LC filter, RFI Filter, and passive filters. Hannibal Standalone UPS can work with different battery types like Saft  Ni-CD / VRLA/ OPZV/ OPZV/ Lithium ion,

  • <6% Input THDi with harmonic filter
  • Various voltage settings for different countries
  • Bypass line
  • Fusible Surge
  • Suppression (AC/DC)
  • Redundant Fans
  • Ingress Protection: up to IP66
  • Automatic Battery Test
  • Parallel up to 4 units
  • DC Load supply
  • Temperature Compensating Charging
  • Auxiliary Trip Contact
  • TMS or LSI/G Protection
  • Dropper (for DC loads), LVD for battery protection
  • AC/DC Earth Fault Protection (adjustable)
  • Phase Voltage/Sequence protection
  • 500 Real Time Event Log with Detailed Parameters
  • User Friendly Multilingual 320×240 Graphic Display Provided
  • Operation Information
  • Monitoring and Shutdown Software
  • RS232 Serial and RS485 Ports
  • Modbus RTU (Optional)
  • 2 Communication Slots
  • Remote Emergency Power Off (Optional)
  • Remote Display Panel (Optional)
  • Dry Contact (Optional)
  • SNMP (Optional)
